Creating 2d Plans With Sketchup Youtube Begin drawing your 2d element. Take your SketchUp 3D model into 2D space with LayOut.
4 Sketchup Tips For 2d Plan View Youtube
Then you can send the file to LayOut add dimensions labels other text photos or whatever else you need to help communicate your project.
Draw 2d in sketchup. Use the basic tools to start with if you are just learning the program. You see if an application is a good 3D drawing tool then using it to draw in 2D is a simple matter of restricting your view to one plane and using only its 2D tools. A Pro version is available if your more serious about design and want to create 2D3D visuals for clients or your own personal use.
Use the rectangle icon if you wish to create a square or rectangle. Googles SketchUp program is known for being exceptionally user-friendly and will give you the ability to create your 2D drawing in almost no time. LayOut takes your 3D model into 2D space.
Click on the rectangle tool and draw a rectangle from the origin point. This geometry includes all native LayOut entity types. Click on the pencil icon to draw a straight line or use the arc tool to create a curved line.
You also want to make sure that youre not seeing things in perspective which distorts your view of what you have. Click on the icon. Start by drawing lines and shapes.
Open SketchUp and make sure the standard views are on your toolbar. Theres a reason SketchUp is synonymous with friendly and forgiving 3D modeling software. In order to draw a face SketchUp must have at least 3 lines that create a closed shape on a 2 dimensional plane meaning that the 3 lines must all intersect at some point.
To avoid this make sure the tool reads on face when you hover over the rectangle. The standard view icons are little houses. If youre going to use SketchUp to draw a 2D plan the first thing you need to do is orient your point of view.
Annotate document and communicate clearly so you can move your project forward. The free version is very. SketchUp is great if youre new to interior design particularly if you want to venture down the 3D route.
Its the tool for creating documentation from your SketchUp model. Push and pull surfaces to turn them into 3D forms. Its easiest to draw in 2D when youre directly above your work looking down at the ground plane.
SketchUP Pro SketchUp Pro is easy and intuitive allowing anyone to model in 3D quickly and accurately. Group the import geometry. Image by Summit Legend More than just a Drafting Board.
Creating a Scaled Drawing Within a group you can apply a scale to a 2D drawing so that all geometry in that group reflects the selected scale. The plane of choice is somewhat arbitrary but I am going to suggest the RedGreen plane. For 2D files export multiple CAD files limiting layers as appropriate in each to manage clutter when in SketchUp.
Lets say that we draw a triangle using the line tool. We dont sacrifice usability for the sake of functionality. Let me give you an example.
However when you apply this scale group entities such as text labels and dimensions retain their original properties such as line and font size. How to Make 2D Drawings in SketchUp Step 1. With PlusSpec for SketchUp your 2D drawings are created with SketchUp Pro Layout and you can draw plans elevations sections details specifications title blocks and other graphics with LayOut.
Drawing Floor Plans with SketchUp Hub A Review. Start Drawing 2D in Sketchup. Specifically turn off all text and dimensions and their leader lines so that they do not import as linework.
File Import and set drawing units and decide whether to preserve the drawing origin. You start in SketchUp draw your project and create scenes to show the different views. Once you have created your 2D drawing in SketchUp you can use that as a base for making a 3D model or you can simply use your 2D creation as is.
When your model changes so do your 2D drawings. One common mistake people make when using Sketchup is drawing on different axes.
2d Drawing In Sketchup Popular Woodworking Magazine
Make Even Better Drawings With Layout
How To Create A 3d Google Sketchup Model From A 2d Cadstd Drawing

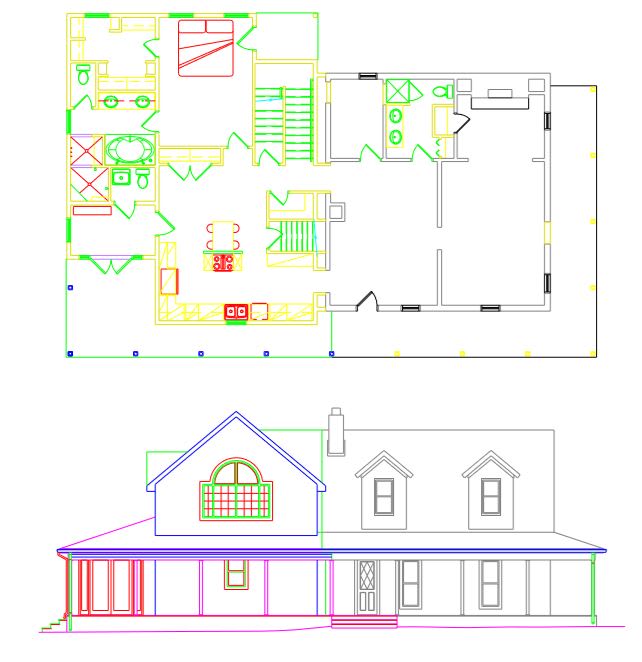

Convert 2d Drawings Using Autocad Or Sketchup By Mathewskender
